优势和特点
- 128 Position
- End-to-End Resistance 5k欧姆, 10k欧姆 , 50k欧姆 , 100k欧姆
- Ultra-Compact SC70-6 (2 mm x 2.1 mm) Package
- I(2)C Compatible Interface
- Full Read/Write of Wiper Register
- Power-on Preset to Midscale
| - Single Supply +2.7 V to +5.5 V
- Low Temperature Coefficient 45 ppm/°C
- Low Power, I(DD)=3 µA typical
- Wide Operating Temperature -40°C to +125°C
- Evaluation Board Available
- Available in lead-free (Pb-free) package
|
产品详情
The AD5246 provides a compact 2 mm × 2.1 mm packaged solution for 128-position adjustment applications. This device performs the same electronic adjustment function as a variable resistor. Available in four different end-to-end resistance values (5 k欧姆, 10 k欧姆, 50 k欧姆, 100 k欧姆), these low temperature coefficient devices are ideal for high accuracy and stability variable resistance adjustments.

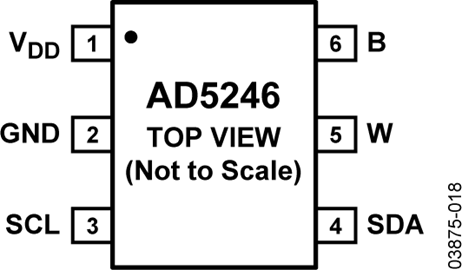

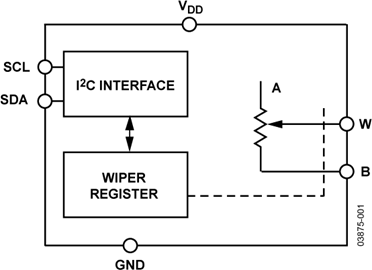

The wiper settings are controllable through the I2C compatible digital interface, which can also be used to read back the present wiper register control word. The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC(1) latch.
Operating from a 2.7 V to 5.5 V power supply and consuming 3 μA allows for usage in portable battery-operated applications.
APPLICATIONSMechanical potentiometer replacement in new designsTransducer adjustment of pressure, temperature, position,
chemical, and optical sensorsRF amplifier biasingAutomotive electronics adjustmentGain control and offset adjustment (1)
The terms digital potentiometer, VR, and RDAC are used interchangeably in this document.
