LTC4304 数据手册-pdf中文资料-产品介绍及应用电路

LTC4304产品信息：

概览

优势和特点
产品详情

优势和特点

Automatic Disconnect of SDA/SCL Lines when Bus is Stuck Low for ≥30ms
Fault Flag for Stuck Bus
Recovers Stuck Busses with Automatic Clocking*
Bidirectional Buffer* for SDA and SCL Lines Increases Fanout
Prevents SDA and SCL Corruption During Live Board Insertion and Removal from Backplane
Allows Bus Pullup Voltages Above and Below V(CC)
±15kV Human Body Model ESD Protection
Isolates Input SDA and SCL Lines from Output
Compatible with I(2)C(TM), I2C Fast-Mode and SMBus Standards (Up to 400kHz Operation)
READY Open Drain Output
1V Precharge on All SDA and SCL Lines
High Impedance SDA, SCL Pins for V(CC) = 0V
ENABLE Gates Connection from Input to Output
MSOP 10-Pin and DFN (3mm × 3mm) Packages

产品详情

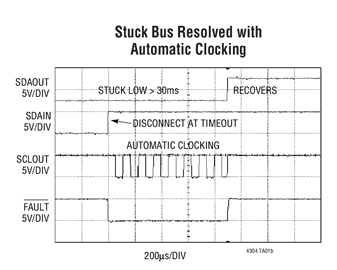

The LTC( )4304 hot swappable 2-wire bus buffer allows I/O card insertion into a live backplane without corruption of the data and clock busses. When a connection is made, the LTC4304 provides bidirectional buffering, keeping the backplane and card capacitances isolated. If SDAOUT or SCLOUT is low for ≥30ms (typ), the LTC4304 automatically breaks the data and clock bus connection and FAULT will pull low. At this time the LTC4304 automatically generates up to 16 clock pulses on SCLOUT in an attempt to free the bus. A connection will be enabled automatically when the bus becomes free. A logic low on the ACC input enables the LTC4304's rise-time accelerators. A logic high on ACC disables the rise-time accelerators, which allows SDA and SCL bus pull-up voltages below V(CC).

During insertion, the SDA and SCL lines are precharged to 1V to minimize bus disturbances. When driven high, ENABLE allows the LTC4304 to connect after a stop bit or bus idle occurs. Driving ENABLE low breaks the connection between SDAIN and SDAOUT, SCLIN and SCLOUT. READY is an open drain output that indicates when the backplane and card sides are connected together.

*Patent Pending

应用

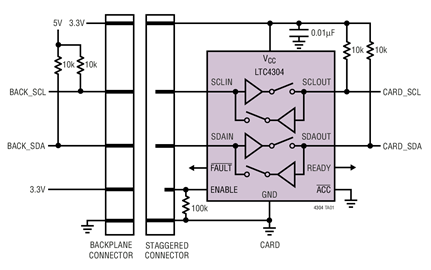

Hot Board Insertion
Servers
Capacitance Buffer/Bus Extender
RAID Systems

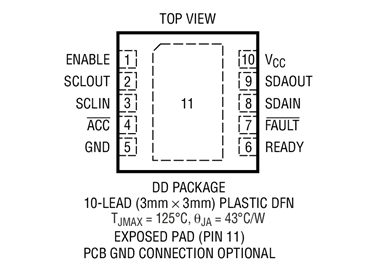

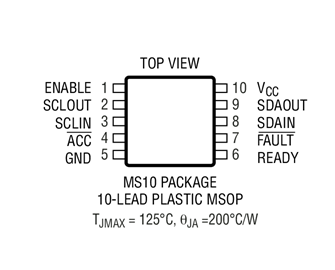

LTC4304: 【用　途】两线总线缓冲器【性能参数】采用MSOP-10和3mmx3mmDFN封装，该器件SDA和SCL引脚除了方便板卡的带电插入或拔出，还能承受±15kV的ESD。引脚排列图：【互换兼容】
凌特推出具有阻塞总线恢复功能的两线总线缓冲器: 凌特公司推出具有阻塞总线恢复功能的两线总线缓冲器 LTC4303 和 LTC4304。通过隔离所有在上行侧的总线连接，这些新的集成电路解决了阻塞总线的共有问题，同时恢复下行总线。如果串行数据输出 SDAOUT 或串行时钟输出 SCLOUT 为低电平的时间超过 30ms，那么 LTC4304 将自动中断数据和时钟连接，发布一个故障（Fault）信号。接着，LTC4304 将自动在 SCLOUT 引脚
凌特I2C/SMBus缓冲器可恢复阻塞总线: p{text-indent=2em}凌特公司(LinearTechnology)日前推出具有阻塞总线恢复功能的I2C/SMBus两线总线缓冲器——LTC4303和LTC4304。如果串行数据输出SDAOUT或串行时钟输出SCLOUT为低电平的时间超过30ms，那么LTC4304将自动中断数据和时钟连接，发布一个故障(Fault)信号。接着，LTC4304将自动在SCLOUT引脚上产生多达16个时钟脉冲，试图释
凌特推出具有阻塞总线恢复功能的I2C/SMBus两线总线缓冲器: 凌特公司(Linear Technology)推出具有阻塞总线恢复功能的I2C/SMBus两线总线缓冲器——LTC4303和LTC4304。如果串行数据输出SDAOUT或串行时钟输出SCLOUT为低电平的时间超过30ms，那么LTC4304将自动中断数据和时钟连接，发布一个故障(Fault)信号。接着，LT
