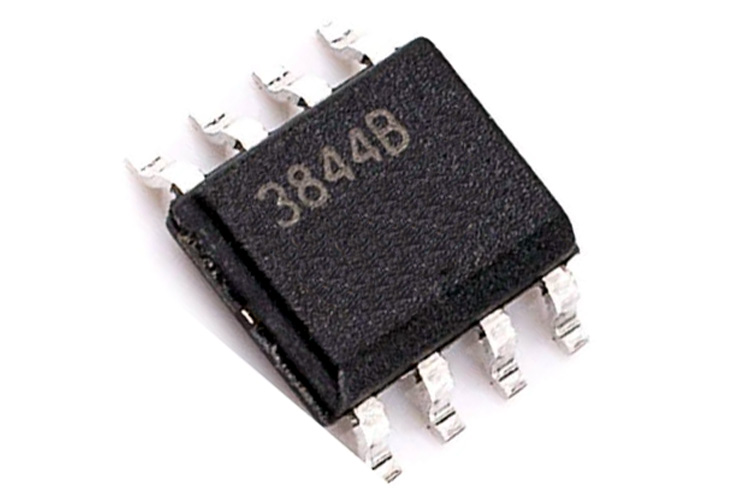

摘要: UC3844是一个固定频率的电流模式PWM控制器。该IC专为使用最少外部组件的离线和DC-DC转换器应用而设计。
UC3844是一个固定频率的电流模式PWM控制器。该IC专为使用最少外部组件的离线和DC-DC转换器应用而设计。
注意:该IC还采用14引脚,16引脚和20引脚封装。本文仅介绍该IC的8引脚版本。

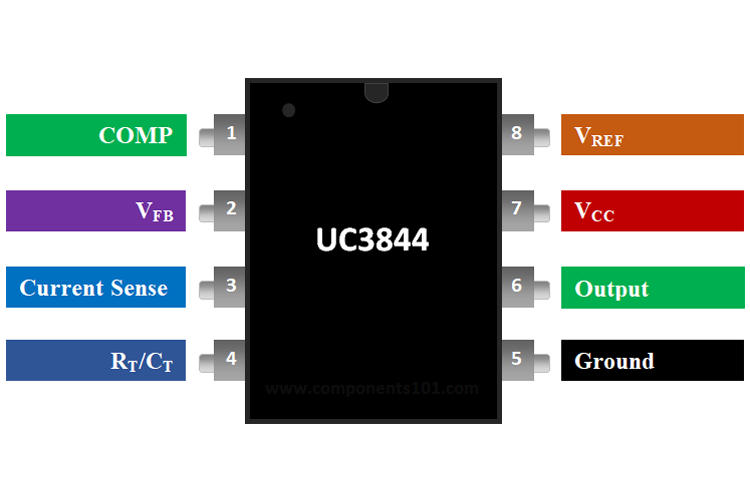

Pin Number | Pin Name | Description |
1 | COMP (Comparator) | It is an output pin that outputs low impedance 1MHz signal based on the difference between the set and current-voltage. It is normally connected to the voltage feedback pin of the IC through a resistor and capacitor. |
2 | VFB (Voltage Feedback) | It is an input to the error amplifier inside the IC. The difference in voltage level is supplied to this pin. |
3 | Current Sense | A shunt resistor is used to monitor the current through the circuit, and the voltage across it is provided as a feedback to the current sense pin |
4 | RT/CT (Timing Resistor/ Timing Capacitor) | The IC has an internal oscillator which can be set using an external resistor and capacitor connected to this pin. |
5 | Ground | Connected to the ground of the circuit |
6 | Output | This pin outputs the PWM signal based on the feedback provided and we can use this to switch the power electronic device. |
7 | Supply voltage for the IC (Nominal 11V) | |
8 | Reference voltage based on which the PWM signal is produced. |
电流模式PWM控制器
工作电压:12V至28V
输出引脚电流:200 mA
开关频率:500 kHz
占空比-最大值:100%
工作电源电流:25 mA
针对离线和DC-DC转换器进行了优化
大电流图腾柱输出
输出死区时间可从50%t调整
UC3844的等效/替代品:UC3843,UC3842
替代品PWM控制器IC: UC2842,SG2524
UC3844 IC是一个电流模式PWM控制器,这意味着它可以用于通过改变输出电压向负载提供恒定电流。该IC具有用于精确占空比控制的微调振荡器,温度补偿基准,高增益误差放大器,电流检测比较器以及用于驱动功率MOSFET的高电流图腾柱输出。UC3842和UC3844具有相同的UVLO阈值,分别为16V(开启)和10V(关闭)。
UC3844可用于调节或限制SMPS,RPS,DC-DC转换器,线路电压调节器等应用中的电流。因此,如果您正在寻找一种IC来产生PWM信号来基于电流流动来控制电源开关,通过电路,那么该IC可能是您的正确选择。
在电路中使用UC3844非常简单,因为它需要最少的组件数量。UC3844数据表中的示例应用电路如下所示。
VCC引脚的输入电压应为12V至28v。IC的输出引脚连接到要开关的电源开关的栅极驱动器电路。VFB(电压反馈)引脚用作反馈,基于该反馈可控制PWM信号。分流电阻器用于监视电路中电流的变化,然后将分流器两端的这种差分电压提供给反馈引脚。VREF用于通过定时电阻为振荡器定时电容器提供充电电流。对于参考稳定性而言,重要的是,VREF的旁路应通过一个陶瓷电容器连接到地,该陶瓷电容器应尽可能靠近该引脚。
SMPS(开关模式电源)电路
DC-DC转换器电路
电子电源
电池消耗电路
装载机

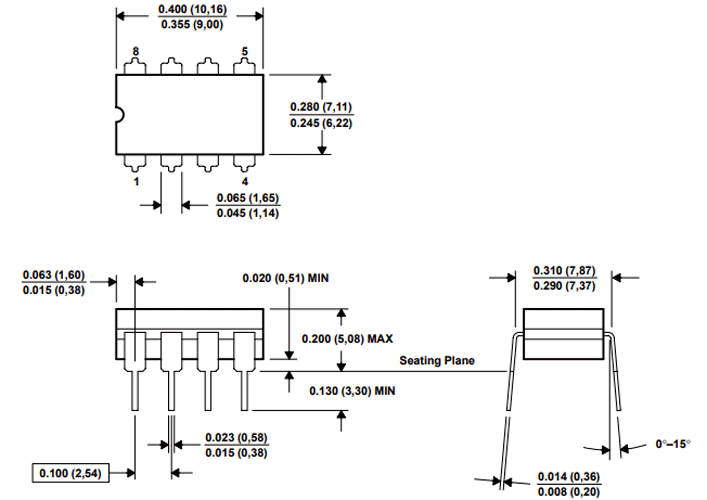

UC3844 IC的尺寸如下。这些尺寸适用于8引脚GDIP 封装。如果您使用其他封装的IC,请参考UC3844数据表。
