AD8232 ECG模块_引脚配置_功能说明

来源：HQBUY 发布时间：2020-08-24

摘要： AD8232 ECG模块与Analog Devices的AD8232 IC 集成在一起，是一款单芯片，旨在提取，放大和过滤生物电势信号，用于生物电势测量应用（如ECG等）。ECG可能非常嘈杂，因此AD8232单导心率监测器可以用作运算放大器，以帮助轻松地从PR和QT间隔中获得清晰的信号。

AD8232 ECG模块与Analog Devices的AD8232 IC 集成在一起，是一款单芯片，旨在提取，放大和过滤生物电势信号，用于生物电势测量应用（如ECG等）。ECG可能非常嘈杂，因此AD8232单导心率监测器可以用作运算放大器，以帮助轻松地从PR和QT间隔中获得清晰的信号。

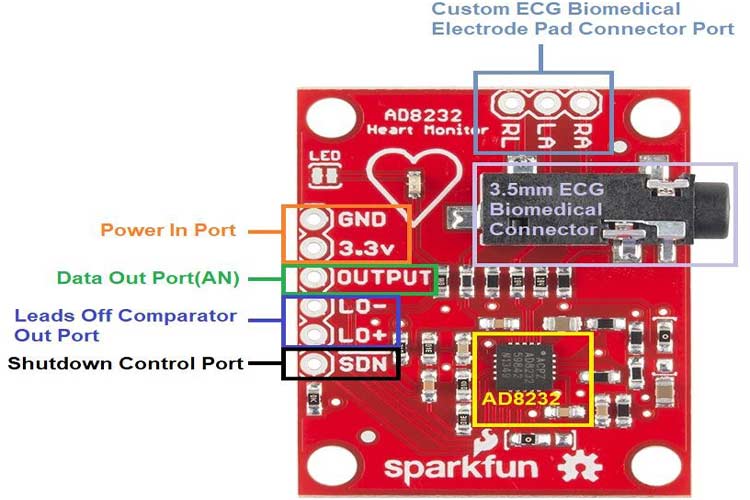

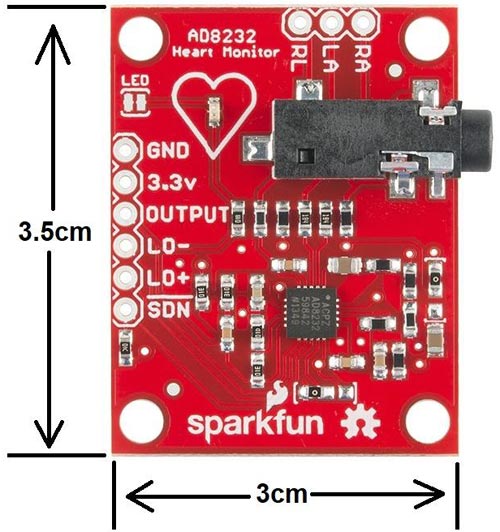

AD8232 ECG模块

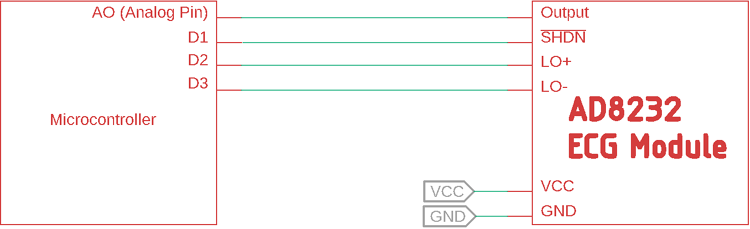

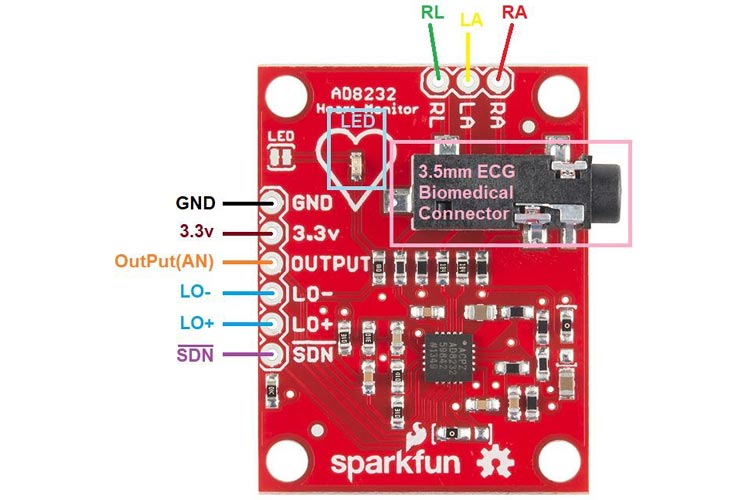

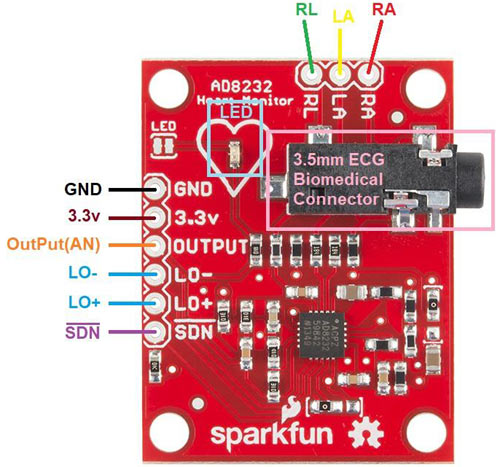

AD8232 ECG模块的引脚说明

Pin Name	Description
GND	Power Supply Ground
3.3v	Power Supply 3.3v
Output (ADC)	Operational Amplifier Output. The fully conditioned heart rate signal is present at this output. OUT can be connected to the input of an ADC.
LO-	Leads Off Comparator Output. In dc leads off detection mode, LO? is high when the electrode to ?IN is disconnected, and it is low when connected
LO+	Leads Off Comparator Output. In dc leads off detection mode, LOD+ is high when the +IN electrode is disconnected, and it is low when connected
SDN Pin	Shutdown Control Input. Drive SDN low to enter the low power shutdown mode.
RA (Right Arm)	RED Biomedical electrode pad RA(input). Instrumentation Amplifier Negative Input. ?IN is typically connected to the right arm (RA) electrode
LA (Left Arm)	YELLOW Biomedical electrode pad LA(input). Instrumentation Amplifier Positive Input. +IN is typically connected to the left arm (LA) electrode
RL(Right Leg)	GREEN Biomedical electrode pad RL(input). Right Leg Drive Output. Connect the driven electrode (typically, right leg) to the RLD pin.
3.5mm ECG Biomedical Electrode Connector Jack	Combine Biomedical Electrode pad Connector of RA, LA, RL
